Specifications

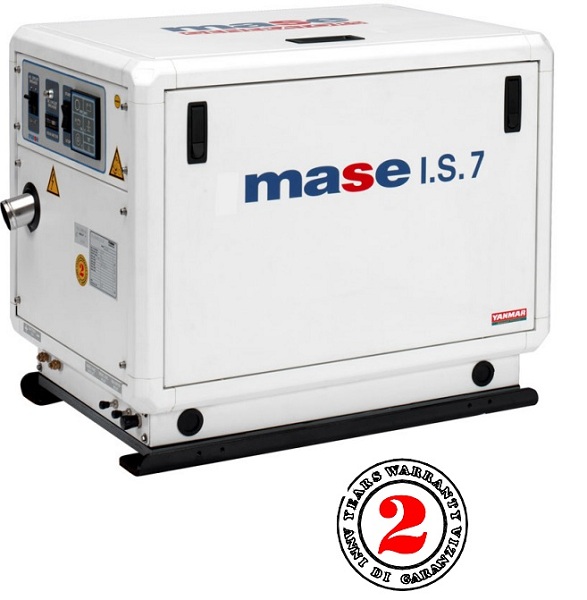

            Mase diesel marine generator IS 7 (7 kv) 50 hz 1500 RPM with Intercooler System ,Soundproof for sale in Greece by Aibsailing

                Mase diesel marine generator IS 8.1  (8 kv) 60 hz 1800 RPM with Intercooler System ,Soundproof for sale in Greece by Aibsailing

• • Engine

     Easy access in case of maintenance of feeding system, lubrication system, sea/water pump and air filter.

     Safety stop in case of low oil pressure.

     Safety stop in case high engine temperature or exhaust gas temperature.

     Double vibration dumping system.

     Oil filter and fuel filter easy to replace.

     Oil drain pump provided.

    Cooling system

    The cooling of the engine is based on a closed inner flow of coolant. The system is based on a heat exchanger seawater/coolant type, of cupronickel, where the thermal exchange occurs between the two liquids.

    Two separate pumps contribute to the flow of the coolant and the sea water. The cooling of the air inside the gen-set is obtained through a seawater/air heat exchanger.

    This provides the efficacious cooling of the alternator and the optimal temperature for the best performance and reliability of the gen-set despite its on board allocation and room temperature.



    Alternator

    • Synchronous, 4 poles, brush less self-excited.

    • Rotor and stator epoxy resin coated against external agents.

    • Rotor dynamically balanced.

    • Insulation class H

         For more details and full specifications and pricing after discount   we are on your disposal at    This email address is being protected from spambots. You need JavaScript enabled to view it.
