Specifications

Online Reservation



Price  17400 € in box with Yanmar or Kubota engine



Remote control panel is not included



AC generator - 50Hz

Type: synchronous, 4 poles, self-excited, brushless, with AVR

• Cooling: Air/water (Intercooler W/A)

• Max. power: 8 kW

• Voltage (V): 115 - 230

• Amps: 69,5 - 34,8

• Power factor: cos ф 1

• Voltage stability: ±2%

• Frequency stability: ±5%

Diesel Engine 1500 rpm

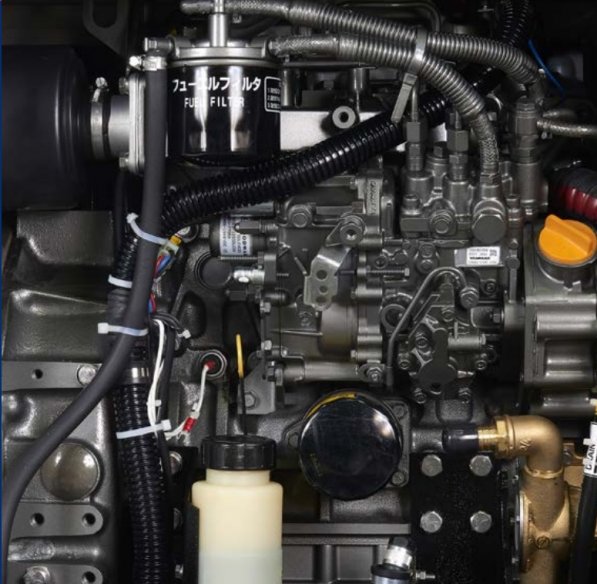

• Type: Yanmar 3TNV80F - 3 cyl. - 12,74 hp (9,5 kWm) - 1267 cm3

• Starting system: electric (12Vdc)

• Fuel consumption @ 100%: 2,9 lt/h

• Easy access in case of maintenance of feeding system, lubrication system, sea/water pump and air filter

• Safety stop in case of low oil pressure

• Safety stop in case high water temperature and high exhaust gas temperature

• Oil filter and fuel filter easy to replace

• Quick access to seawater pump

• Double vibration damping system

• Oil extraction pump

Standard Features



• Emergency stop button

• Thermal protection



Other features

• Insulation Class: H

• Ambient temperature: 40 °C (*)

• Altitude: 1000 mt (*)

• Mechanical Protection: IP 23

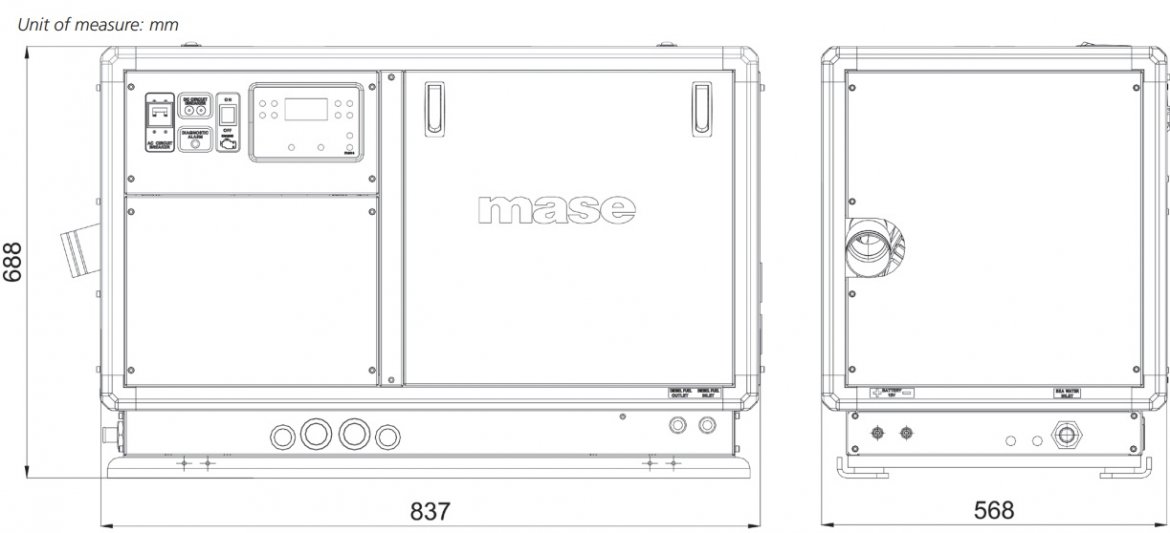

• Dimensions (L x W x H): 837 x 568 x 688 mm

• Dry weight: 295 Kg

• Max. inclination: 30°

• Water pump flow (l/min): 25

• Cooling system: cupronickel exchanger (heat exchange between coolant liquid and sea water)

• Soundproof cabin made of extremely light marine aluminum with very high resistance to external agents



for more details and our best price we are on your disposal at This email address is being protected from spambots. You need JavaScript enabled to view it.
