Specifications





Price  16150 € in box with Yanmar  engine

 Price 14700 € in box with Yanmar  engine

Remote control panel is not included



AC generator - 50Hz

Type: synchronous, 4 poles, self-excited, brushless, with AVR

• Cooling: Air

• Max. power: 8 kW

• Continuous power: 7,5 kW

• Voltage (V): 115 - 230 •

Amps: 69,5 - 34,8

• Power factor: cos ф 1

• Voltage stability: ±2%

• Frequency stability: ±5%

Diesel Engine 1500 rpm

• Type: Yanmar 3TNV80F - 3 cil. - 12,7 hp (9,4 kWm) - 1267 cm3

• Starting system: electric (12Vdc)

• Fuel consumption @ 100%: 2,9 lt/h

• Easy access in case of maintenance of feeding system, lubrication system, sea/water pump and air filter

• Safety stop in case of low oil pressure

• Safety stop in case high water temperature or high exhaust gas temperature

• Oil filter and fuel filter easy to replace

• Double vibration dumping system

• Oil drain pump

Standard Features



• Emergency stop button

• Thermal protection



Other features

• Insulation Class: H

• Ambient temperature: 40 °C (*)

• Altitude: 1000 mt (*)

• Mechanical Protection: IP 23

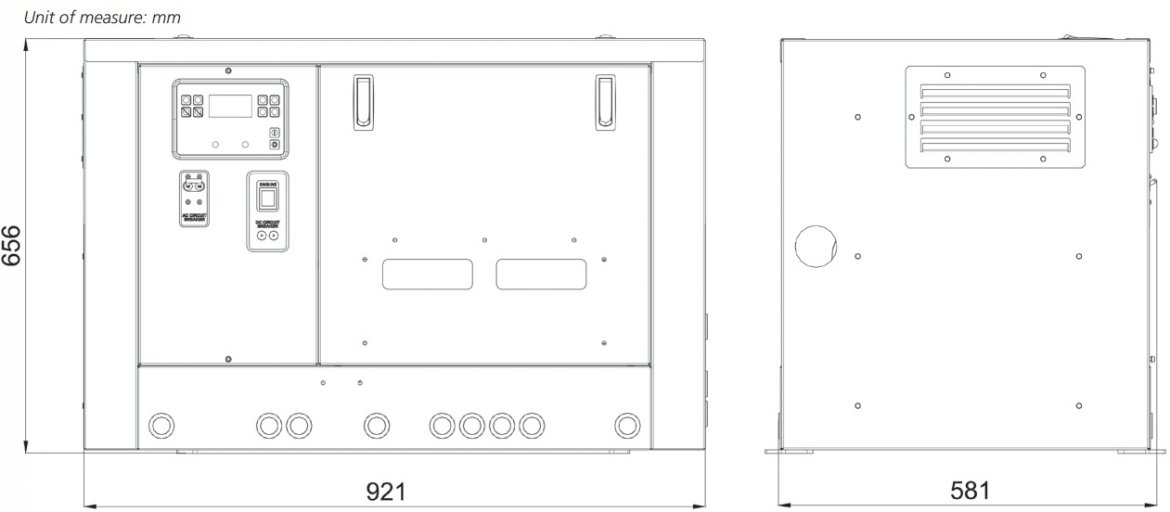

• Dimensions (L x W x H): 921 x 581 x 656

• Dry weight: 295 Kg

• Max. inclination: 30°

• Water pump flow (l/min): 25

• Cooling system: cupronickel exchanger (heat exchange between coolant liquid and sea water)

• Soundproof cabin made of extremely light marine aluminum with very high resistance to external agents
